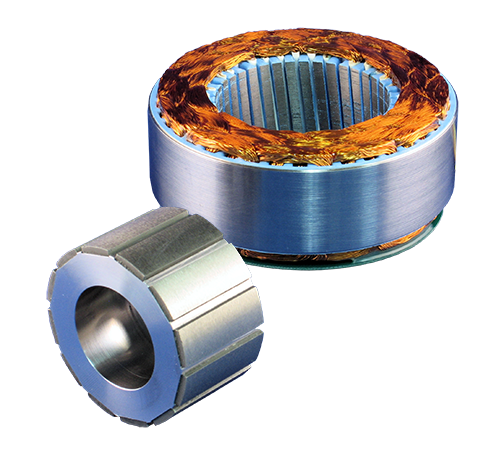

GROUP SIX offers AM's HT (High Torque) family of frameless brushless torque motors. The HT motors are high torque density motors offered as frameless stator-rotor pairs for direct integration to a drive axis. The family includes nine stator diameter frame sizes, each with up to six stator stack lengths, providing a total of 49 combinations of size and performance to choose from.

These are a good starting point for spindle applications. For robotics and positioning systems we suggest you also review the MF Series motors by Allied Motion.

Summarized below are the key performance values for the standard HT models. If you don’t find exactly what you need among these standard models.

Ask about:

- Customized or optimized windings

- Standard or skewed stator poles

- thermistor and hall effect sensor options

- special connectors of terminations




SeriesFrame Size (OD)(mm)Frame Size (ID max.)(mm)Rotor Length(mm)Voltage(Vdc)Continuous Stall Torque(Nm)No-load Speed(rpm)Product Information
HT008
19
5
11, 21, 31
24
0.008, 0.015, 0.021
10891 - 18298
Additional Files
HT010
27
6
11-41
24
0.1
4796 - 8510
Additional Files
HT015
38
9
11-62
24
0.1 - 0.3
2845 - 6897
Additional Files
HT020
49
20
11-62
24
0.1 - 0.7
1429 - 3948
Additional Files
HT023
60
29
11-62
24
0.2 - 1.2
600 - 1904
Additional Files
HT025
63
25
11-62
24
0.2 - 1.2
847 - 1954
Additional Files
HT030
76
35
11-62
24
0.4 - 2.2
530 - 1857
Additional Files
HT038
95
43
11-62
100
0.8 - 4.6
545 - 1568
Additional Files
HT050
127
64
11-62
100
1.6 - 9
419 - 1424
Additional Files
