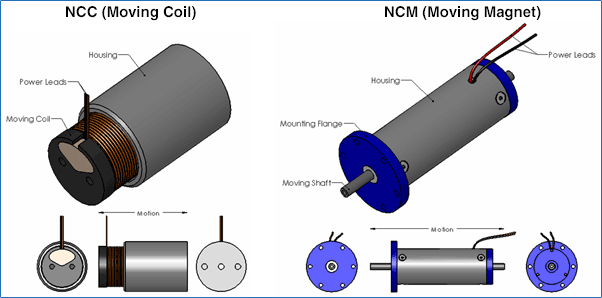

Voice Coils - Moving Magnet - Internally Supplied Bearings
| Model # | Thumbnail | Stroke | Continuous Force | Peak Force | Motor Constant | Moving Mass | Outside Diameter | Housing Length | Quick Ship | |
|---|---|---|---|---|---|---|---|---|---|---|
| NCM01-05-003-3X |  |
0.10 in 2.5 mm | 0.27 lbs 1.2 N | 0.81 lbs 3.6 N | 0.25 lbs/√watt 1.1 N/√watt | 0.16 oz 4.4 grams | 0.54 in 13.7 mm | 0.72 in 18.3 mm |  |
 |
| NCM01-07-001-2X |  |
0.13 in 3.2 mm | 0.12 lbs 0.50 N | 0.36 lbs 1.6 N | 0.18 lbs/√watt 0.78 N/√watt | 0.48 oz 12.0 grams | 0.72 in 18.3 mm | 0.93 in 23.5 mm | |
|
| NCM01-07-004-2NH |  |
0.08 in 2.0 mm | 0.3 lbs 1.3 N | 0.9 lbs 4.0 N | 0.16 lbs/√watt 0.70 N/√watt | 0.18 oz 5.0 grams | 0.65 in 16.5 mm | 0.58 in 14.6 mm | |
 |
| NCM01-08-008-3X |  |
0.085 in 2.2 mm | 0.60 lbs 2.7 N | 1.8 lbs 8.1 N | 0.39 lbs/√watt 1.7 N/√watt | 0.50 oz 15.0 grams | 0.75 in 19.1 mm | 0.99 in 25.1 mm | |
|
| NCM02-05-005-4JB |  |
0.15 in 3.8 mm | 0.50 lbs 2.2 N | 1.5 lbs 6.7 N | 0.38 lbs/√watt 1.7 N/√watt | 0.42 oz 12.0 grams | 0.52 in 13.2 mm | 1.7 in 42.4 mm | |
|
| NCM02-05-005-4JBH |  |
0.15 in 3.8 mm | 0.50 lbs 2.2 N | 1.5 lbs 6.7 N | 0.38 lbs/√watt 1.7 N/√watt | 0.42 oz 12.0 grams | 0.52 in 13.2 mm | 1.7 in 42.4 mm | |
|
| NCM02-05-005-4JBL |  |
0.15 in 3.8 mm | 0.50 lbs 2.2 N | 1.5 lbs 6.6 N | 0.38 lbs/√watt 1.7 N/√watt | 0.42 oz 12.0 grams | 0.52 in 13.2 mm | 1.7 in 42.4 mm | |
|
| NCM02-05-005-4JBMC |  |
0.15 in 3.8 mm | 0.50 lbs 2.2 N | 1.5 lbs 6.7 N | 0.38 lbs/√watt 1.7 N/√watt | 0.48 oz 12.0 grams | 0.52 in 13.2 mm | 1.7 in 42.4 mm | |
|
| NCM02-05-005-4JBMS |  |
0.15 in 3.8 mm | 0.50 lbs 2.2 N | 1.5 lbs 6.7 N | 0.38 lbs/√watt 1.7 N/√watt | 0.48 oz 12.0 grams | 0.52 in 13.2 mm | 1.7 in 42.4 mm | |
|
| NCM02-10-008-2JBA |  |
0.20 in 5.1 mm | 0.80 lbs 3.7 N | 2.4 lbs 11.2 N | 0.42 lbs/√watt 1.9 N/√watt | 0.80 oz 24.0 grams | 1.0 in 25.4 mm | 1.4 in 34.5 mm | |
|
| NCM02-10-012-2JB |  |
0.20 in 5.1 mm | 1.2 lbs 5.3 N | 3.6 lbs 16.0 N | 0.60 lbs/√watt 3.8 N/√watt | 0.84 oz 24.0 grams | 1.0 in 25.4 mm | 1.5 in 37.1 mm | |
|
| NCM02-17-035-2F |  |
0.22 in 5.6 mm | 3.5 lbs 15.6 N | 10.5 lbs 46.7 N | 1.1 lbs/√watt 4.8 N/√watt | 4.1 oz 115 grams | 1.7 in 44.3 mm | 1.5 in 37.2 mm | |
|
| NCM03-06-005-5JB |  |
0.32 in 8.1 mm | 0.50 lbs 2.2 N | 1.5 lbs 6.7 N | 0.35 lbs/√watt 1.6 N/√watt | 0.48 oz 15.0 grams | 0.64 in 16.4 mm | 2.8 in 70.5 mm | |
|
| NCM03-06-005-5JBL |  |
0.32 in 8.1 mm | 0.50 lbs 2.2 N | 0.025 lbs 0.64 N | 0.35 lbs/√watt 1.6 N/√watt | 0.53 oz 15.0 grams | 0.65 in 16.5 mm | 4.2 in 106 mm | |
|
| NCM03-20-005-3R |  |
0.25 in 6.4 mm | 0.50 lbs 2.2 N | 1.5 lbs 6.7 N | 0.45 lbs/√watt 1.99 N/√watt | 4.6 oz 129 grams | 2.0 in 50.8 mm | 5.9 in 149.9 mm | |
|
| NCM03-20-089-2LB |  |
0.25 in 6.4 mm | 8.9 lbs 39.6 N | 26.7 lbs 119 N | 2.1 lbs/√watt 0.42 N/√watt | 9.4 oz 268 grams | 2.0 in 50.8 mm | 3.6 in 91.4 mm | |
|
| NCM03-35-500-4F |  |
0.25 in 6.4 mm | 50.0 lbs 223 N | 150 lbs 668 N | 7.1 lbs/√watt 31.4 N/√watt | 88.2 oz 2500 grams | 3.5 in 88.9 mm | 6.3 in 160.5 mm | |
|
| NCM04-35-250-2LVE |  |
0.40 in 10.2 mm | 25.0 lbs 111 N | 75.0 lbs 334 N | 2.9 lbs/√watt 12.9 N/√watt | 74.1 oz 2100 grams | 3.5 in 88.6 mm | 10.2 in 259.2 mm | |
|
| NCM05-06-008-5JB |  |
0.50 in 12.7 mm | 0.80 lbs 3.6 N | 2.4 lbs 10.7 N | 0.58 lbs/√watt 2.6 N/√watt | 1.5 oz 41.0 grams | 0.65 in 16.5 mm | 3.7 in 93.7 mm | |
|
| NCM05-10-005-2JB |  |
0.50 in 12.7 mm | 0.50 lbs 2.2 N | 1.5 lbs 6.7 N | 0.22 lbs/√watt 1.02 N/√watt | 0.70 oz 20.0 grams | 0.98 in 25.0 mm | 2.74 in 69.5 mm | |
|
| NCM05-23-100-3LB |  |
0.50 in 12.7 mm | 10.0 lbs 45.0 N | 30.0 lbs 134 N | 2.1 lbs/√watt 9.4 N/√watt | 14.5 oz 410 grams | 4.0 in 101 mm | 5.2 in 132 mm | |
|
| NCM05-28-180-2LB |  |
0.50 in 12.7 mm | 18.0 lbs 80.0 N | 54.0 lbs 240 N | 2.7 lbs/√watt 12.1 N/√watt | 24.9 oz 706 grams | 2.9 in 75.7 mm | 4.8 in 120 mm | |
|
| NCM05-28-180-2LBZ | |
0.50 in 12.7 mm | 18.0 lbs 80.0 N | 54.0 lbs 240 N | 2.7 lbs/√watt 12.1 N/√watt | 24.9 oz 706 grams | 2.98 in 75.7 mm | 4.8 in 120 mm | |
|
| NCM05-28-180-2PBS | |
0.50 in 12.7 mm | 18.0 lbs 80.0 N | 54.0 lbs 240 N | 2.7 lbs/√watt 12.1 N/√watt | 1.6 oz 706 grams | 2.98 in 75.7 mm | 4.8 in 120 mm | |
|
| NCM05-28-180-2PBZ | |
0.50 in 12.7 mm | 18.0 lbs 80.0 N | 54.0 lbs 240 N | 2.7 lbs/√watt 12.1 N/√watt | 24.9 oz 706 grams | 2.9 in 75.7 mm | 4.8 in 120 mm | |
|
| NCM06-06-004-3JBL |  |
0.60 in 15.2 mm | 0.40 lbs 1.8 N | 1.2 lbs 5.4 N | 0.16 lbs/√watt 0.72 N/√watt | 0.74 oz 21.0 grams | 0.65 in 16.5 mm | 2.8 in 70.5 mm | |
|
| NCM06-06-004-3JBT |  |
0.60 in 15.2 mm | 0.40 lbs 1.8 N | 1.2 lbs 5.4 N | 0.16 lbs/√watt 0.72 N/√watt | 0.74 oz 21.0 grams | 1.0 in 25.4 mm | 4.1 in 104 mm | |
|
| NCM06-24-035-3X | |
0.63 in 15.9 mm | 3.5 lbs 15.6 N | 10.5 lbs 46.7 N | 3.0 lbs/√watt 13.2 N/√watt | 4.6 oz 130 grams | 2.9 in 75.0 mm | 4.0 in 101.6 mm | |
|
| NCM08-17-050-2LB |  |
0.75 in 19.1 mm | 5.0 lbs 22.3 N | 15.0 lbs 66.8 N | 1.1 lbs/√watt 4.9 N/√watt | 5.9 oz 166 grams | 1.7 in 43.2 mm | 4.3 in 108 mm | |
|
| NCM08-25-100-2LB |  |
0.75 in 19.1 mm | 10.0 lbs 45.0 N | 30.0 lbs 134 N | 2.2 lbs/√watt 9.6 N/√watt | 16.2 oz 460 grams | 2.5 in 62.2 mm | 4.4 in 111 mm | |
|
| NCM08-35-450-3LB |  |
0.75 in 19.1 mm | 45.0 lbs 200 N | 135 lbs 600 N | 5.4 lbs/√watt 24.1 N/√watt | 73.7 oz 2088 grams | 3.5 in 87.6 mm | 6.9 in 175 mm | |
|
| NCM09-11-010-2X |  |
0.93 in 23.5 mm | 1.0 lbs 4.5 N | 3.0 lbs 13.4 N | 0.70 lbs/√watt 2.8 N/√watt | 2.3 oz 64.0 grams | 1.1 in 28.6 mm | 2.6 in 66.0 mm | |
|
| NCM10-14-028-2BX |  |
1.0 in 25.4 mm | 2.8 lbs 12.5 N | 8.4 lbs 37.4 N | 1.02 lbs/√watt 4.6 N/√watt | 2.0 oz 56.0 grams | 1.4 in 35.6 mm | 3.4 in 86.9 mm | |
|
| NCM10-15-020-2LB |  |
1.0 in 25.4 mm | 2.0 lbs 8.9 N | 6.0 lbs 26.7 N | 0.91 lbs/√watt 4.1 N/√watt | 7.4 oz 210 grams | 2.1 in 54.0 mm | 4.3 in 108 mm | |
|
| NCM15-15-032-2LB |  |
1.5 in 38.1 mm | 3.2 lbs 14.2 N | 9.6 lbs 42.7 N | 0.62 lbs/√watt 2.9 N/√watt | 7.6 oz 215 grams | 2.1 in 54.0 mm | 5.5 in 139.7 mm | |
|
| NCM20-19-050-2BX |  |
2.0 in 50.8 mm | 8.0 lbs 36.0 N | 24.0 lbs 107 N | 1.3 lbs/√watt 5.8 N/√watt | 10.8 oz 305 grams | 2.5 in 63.5 mm | 5.5 in 139 mm | |
|
| NCM24-60-4190-6LB |  |
2.4 in 61.0 mm | 419 lbs 1865 N | 1257 lbs 5594 N | 21.4 lbs/√watt 95.1 N/√watt | 1026 oz 29100 grams | 6.5 in 163.8 mm | 28.4 in 721.4 mm | |
|
| NCM30-25-090-2LB |  |
3.0 in 76.2 mm | 9.0 lbs 40.1 N | 27.0 lbs 120 N | 1.7 lbs/√watt 7.4 N/√watt | 27.2 oz 770 grams | 2.5 in 63.4 mm | 9.2 in 233 mm | |
|
| NCM30-40-600-2LB |  |
3.0 in 76.2 mm | 60.0 lbs 267 N | 180 lbs 801 N | 4.4 lbs/√watt 19.6 N/√watt | 123 oz 3500 grams | 3.99 in 102 mm | 12.0 in 304 mm | |
|
| NCM40-50-680-2LB |  |
4.0 in 101.6 mm | 68.0 lbs 303 N | 204 lbs 908 N | 7.2 lbs/√watt 32.1 N/√watt | 160 oz 4540 grams | 5.0 in 126 mm | 14.0 in 354 mm | |
|

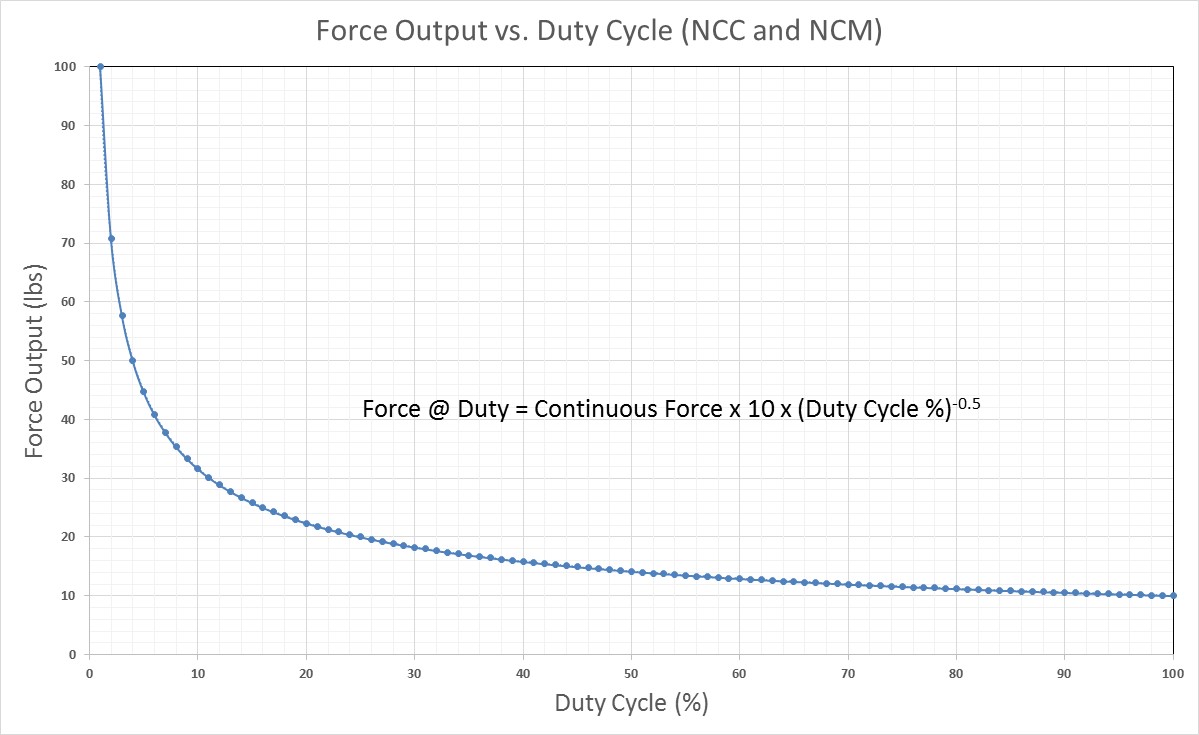

Standard System Oscillatory System
| Model # | Thumbnail | Stroke | Force @100% Duty | Force @ 10% Duty | Motor Constant | Moving Mass | Outside Diameter | Housing Length | Quick Ship | |
|---|---|---|---|---|---|---|---|---|---|---|
| No matching records found | ||||||||||
Showing 0 to 0 of 0 entries (filtered from 89 total entries)
Required Electronics:
Because of the very low inductance of the actuator, a DC servo amplifier is required to provide power to the Voice Coil. A programmable motion controller is required to close the position loop on the system.
